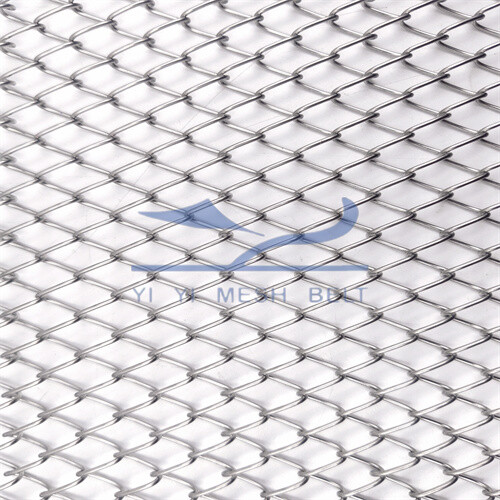

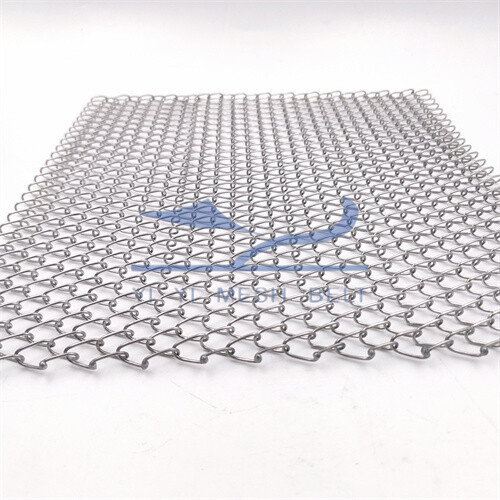

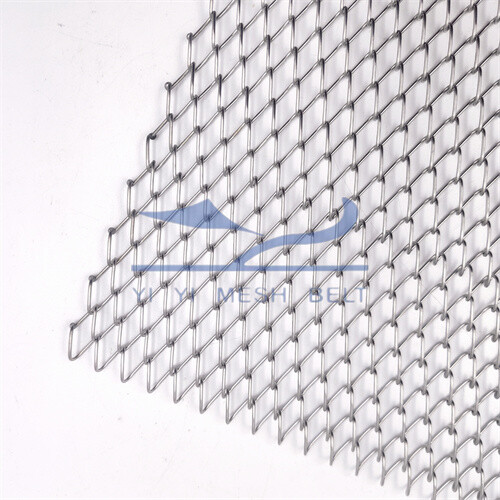

Conventional weave belt is  consists of single directional spirals inter-woven into the preceding spirals.  The advantages of the mesh are as follows: flexibility, smooth running, large opening. good air circulation, easy installation, maintain and repair, Frequently used for food processing and electronic conveying etc.

S belt is conventional weave belt which consists of single directional spirals. The advantaged characteristics of S belt are flexibility, large opening, good air circulation smooth running and easy installation, maintenance and repair. It is widely used for food processing and electronic conveying etc.

Advantages

1．Light weight and cost-effective

2.  Open structure suitable for washing, cleaning and drying products

3．Creep to one direction can be avoided by changing spiral wounding direction with regular intervals

Application：

Material: carbon steel , SUS201 , SUS304 , SUS316

Wire diameter(mm):1.2, 1.4 , 1.5 , 1.6 , 1.8 , 2, 2.5 , 3

Spiral pitch(mm): 6 - 40

Rod pitch( mm): 5 - 30

Belt width(mm):  200 - 5000

Special specifications are available.
